Installation Instructions for the Series TV 6 Crawl Space Vent

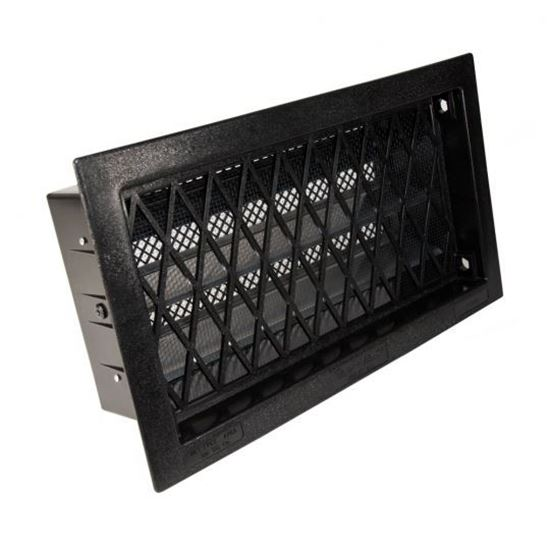

Temp Vent Series 6 Foundation Vent

Available in Gray, Brown or Black

(The White Temp Vent has been discontinued by the manufacturer. However, Temp Vents can be easily painted.)

No Electricity or Batteries Required

Automatic Crawl Space Vent

Automatic Temp-Vent is a revolutionary type of foundation ventilator for the crawl space under a home - it opens and closes by itself.

Temp-Vent automatically helps prevent excess dampness under your home. Dampness leads to foundation decay. Homeowners spend annually $1 billion repairing foundation decay. Dampness leads to unhealthy molds which can cause asthma and hay fever. Dampness hinders your termite control program.

Temp-Vent will help protect and preserve the wood in your home by controlling under-floor dampness. Temp-Vent automatically helps prevent pipe freeze-up.

Temp-Vent automatically stops wasted fuel and heat loss due to open manual vents.

That's right! You do nothing after installation. Temp-Vent opens and closes automatically according to the outside temperature to prevent dampness and save energy. No motors or electricity required. Easily installed.

Old-fashioned manual vents require attention throughout the year to save fuel and deter damp rot. Temp-Vent does it better - automatically.

Installation Tips for Automatic Foundation Vents

• For proper ventilation, install one vent every 8–10 feet
• Avoid dead air spaces by placing vents within 3 feet of each corner
• A minimum of 4 vents is required for cross-ventilation
• Trim dense shrubbery to ensure proper airflow

Warranty Information

• 5 Year Limited Replacement Warranty (does not cover labor costs)
• Warranty valid for 5 years from date of purchase (retain receipt)

Product Specifications

• Fits standard 8" x 16" crawl space openings
• Net free area: 50 square inches
• Heavy-duty coil for dependable operation
• Removable back for easy cleaning and maintenance
• Actual dimensions: 7¾" x 15½" with a depth of 4⅝"
• Overall dimensions: 9¾" x 17½"
• Solid one-piece unit
